BATTERYGet a quote OPTIONAL HOME EV CHARGING
Bring your car into the plan. Add a 7 kW DX home charger to your battery package and discuss a setup that makes the most of your available charging hours.
The EV charger adds £300 to our battery package. Your written quote confirms the model, installation scope and any extra work.
An optional EV charger adds £300 to your listed battery package. We confirm the charger, cable route and electrical requirements for your home before you commit.
Find my system and savings ↗
MAKE MORE OF CHEAPER HOURS
If your tariff’s cheaper rate applies to the whole home, you may be able to charge your EV and battery in the same window. The home battery can then supply stored electricity later in the day.
We’ll check charging demand, the length of that window and your electrical supply. Scheduling a charge is different from automatic integration with a particular energy tariff, so we confirm compatibility before you rely on it.
Already have an EV charger? A battery-only installation may be all you need.

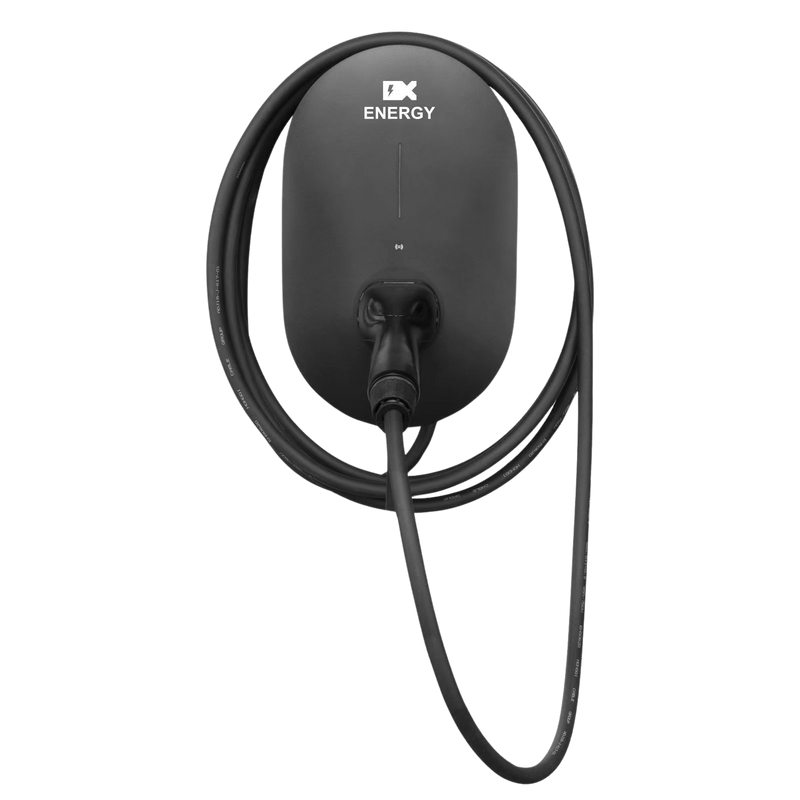

DX 7 kW WALL CHARGER
App scheduling, RFID access and a Type 2 cable, in a compact wall-mounted unit.
| Feature | Specification |
|---|---|
| Output / supply | 7 kW · single-phase 230 V AC · up to 32 A |
| Connector / cable | Type 2 cable · 5 m standard |
| Controls | App, RFID card or Plug & Play operation |
| App features | Scheduled charging, current adjustment, charging status and RFID management |
| Dimensions / weight | 198 mm wide × 317 mm high × 93 mm deep · 3.5 kg net |
| Protection / operating temperature | IP55 · −30 to +50°C |
| Product warranty | 2 years; ask about the optional extension up to 5 years |
| Optional equipment | 7 m cable, socket version, pedestal and smart meter for dynamic load balancing — availability and cost confirmed in your quote |
Actual charging power depends on the vehicle’s onboard charger, the electrical supply and installation settings. The optional equipment listed in the datasheet is not automatically included in the £300 package add-on.
STAY CONNECTED
The two documented models have different internet connection options. We’ll confirm the version supplied in your quote.
| Connection | AC007E-HP-01 | AC007E-HP-02 |
|---|---|---|
| 4G | Yes | No |
| Wi-Fi | No | Yes |
| Bluetooth / Ethernet | Yes | Yes |
| RS485 interface | Yes | Yes |
| OCPP protocol | 1.6 J; 2.0.1 optional | 1.6 J; 2.0.1 optional |
Set charging times and adjust charging current through the app. RFID control can help you manage who starts a charging session. We’ll explain the connection requirements and check any applicable mobile-data or service costs before you choose a model.
Load balancing can adjust EV charging to the power available at the property. The charger datasheet lists an optional smart meter for this feature. It needs to be included and configured as part of the installation; it is not the same as buying a larger home battery.
BEFORE YOU PLUG IN
We’ll look at your parking position, cable reach, mounting surface, electrical supply and connection route. Indoor or outdoor placement must suit the product and the site.
The charger is a £300 add-on to a battery package. Your proposal identifies the charger version and any additional works or optional equipment before you proceed.
The charger’s standard product warranty is two years. This is separate from the battery system’s warranty. Ask about availability and terms of the optional extension up to five years.
MANUFACTURER DOCUMENT
The model table specifies the 7 kW single-phase units offered here. The document also mentions wider charger-family options.
YOUR HOME. YOUR NEXT STEP.
Tell us about your home, your electricity use and what you’d like your system to do.
